    SMD2835 Flat Flexible 120V Driverless LED Strip Lights

    Ask Lasest Price
    Brand Name : filamentlux
    Model Number : FML-001
    Certification : CE,ROHS,
    Price : USD0.32-USD0.52
    Payment Terms : T/T or L/C
    Supply Ability : 500kpcs per month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

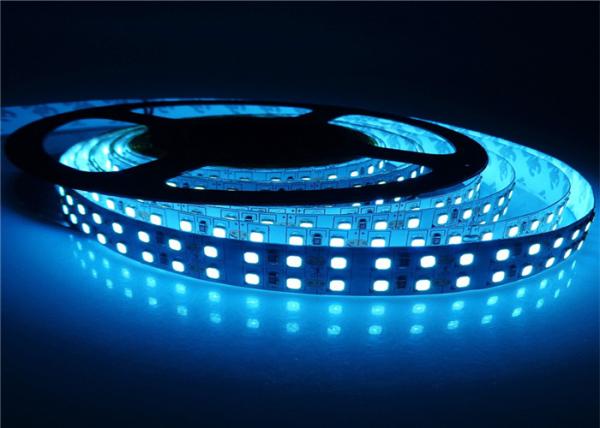

    SMD2835 Flat Flexible 120V Driverless LED Strip Lights

    SMD2835 Flat Flexible 120V Driverless LED Strip Lights


    Considered the most advanced LED strip type, SMD2835 LED strips has the same size as the 3528 chip. In a nutshell, this chip is a re-engineered 3528 LED with an increased light-emitting surface area and better heatsinks which allows 2 to 3 times more light output than the 3528 chip. Designed for better heat dispersion, superior reliability and longer life, the 2835 strip is recommended to work with aluminium extrusions for task lighting, backlighting, garage lighting, under cabinet lighting, bar lighting and general linear lighting in offices or domestic applications. We also offer splashproof IP65 and waterproof IP68 options. Contact us now!


    High quality, low power consumption, energy efficiency. High flexibility, waterproof, and all sorts of stylish design. OEM/ODM services are available. More than 50,000 hours long lifespan with 1-3 years warranty. Wide range of emitting colors and applications. Can be cut as your actual demand and reduce waste. 3M adhesive tape on backside, easy to install. Certifications: RoHS and CE approved, etc.

    • Widely used for home decoration use, hotels, clubs, shopping malls
    • Architectural decorative lighting, boutique atmosphere lighting
    • Extensively applied in Backlighting, concealed lighting, channel letter lighting
    • Emergency & security lighting, advertisement sign lighting
    • Decorative lights for holiday, event, show exhibition
    • Applicable for automobile and bicycle decoration, border or contour lighting

    120V AC LED STRIP LIGHT Parameters:

    ITEM NO.FML-HV-5730-120SH
    INPUT VOLTAGE120V
    Lamp Power14.4W/M 7-9w/m 10W/M
    LED QTY30led/m 60LED/m 120led/m
    IP RankIP20/IP50/IP65/IP66/IP67/IP68
    FREQUENCY50Hz
    LED typeSMD2835 SMD5050
    RATED POWER7.5W±10%/m
    PF>0.9
    Luminous Flux≥500LM 500LM/M 412LM/m 522lm/m
    LPW≥70lm/W
    CCT2800-3200k, 4000-4500K, 6000-6500K, 2700k 3000k, 4000k, 6500k
    Ra≥70
    SDCM<7 SDCM
    Working condition-10℃~40℃;10%~90%
    Insulate classII
    Install methodClip
    Driver connectionPlug in-off
    Dimmer/
    Cover/color/
    NET weight(100m)11kg
    Product sizeL100000mm×W14.5mm×H7mm
    Inner box/
    Master carton330mm × 330mm ×210mm
    Packing100m/CTN
    Lifetime25000h
    Warranty1 year

    120V AC LED STRIP LIGHT Quick Details:

    • Lamp Power: 8W
    • Lamp Luminous Flux(lm): 500LM/M
    • Working Lifetime(Hour): 30000
    • Lamp Body Material: PVC, PCB, Copper Wire
    • Certification: CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
    • Model Number: FML-HV-2835-120-N
    • Warranty(Year): 1/2 years
    • Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
    • LED Light Source: SMD2835 LED Chip
    • Product Name: Led Light Strips
    • LED Quantity: 120leds/m
    • IP Rating: IP65
    • CRI: ≥80,90
    • PCB Width: 12mm
    • Input Voltage(V): AC120V

    1) Pay attention +/- when SMT

    2) LED SMT need to be tidy and without weak soldering

    3) Smooth soldering point and clean LED

    4) No any scar in the PCB

    5) Can not see any color and brightness difference when by naked eye

    Quality SMD2835 Flat Flexible 120V Driverless LED Strip Lights for sale
