DC5V 14.4w 5050SMD 4pin PWM SK6812 RGBW Strip
SK6812RGBW specifications:
SK6812RGBW is an intelligent external control LED light source
which integrates a control circuit and a luminous circuit. Each
element is a pixel LED the same shape as a 5050 lamp bead. The
pixel contains intelligent digital interface data latch signal
shaping and amplifying drive circuit, power supply voltage
regulator circuit, and built-in constant current circuit
The high precision RC oscillator and the patented PWM technology
are used in the output drive, which effectively ensures the high
color consistency of the light in the pixel.
The data protocol adopts a unipolar zero code communication mode.
After the pixel is reset, the DIN end accepts the data transmitted
from the controller. The first 32 bit data are extracted by the
first pixel and sent to the data latch inside the pixel. The
remaining data is amplified by the internal shaping circuit
The output is forwarded to the next concatenated pixel through the
DO port, and the signal is reduced by 32 bit. per pixel
transmission, The pixel point adopts automatic shaping and
forwarding technology, which makes the cascade number of the pixel
point not limited by the signal transmission, but only limited by
the signal transmission speed.
| product name | DC5V RGBW LED strip light |
| LED Chip type | 5050SMD |
| IC type | SK6812 |
| LED Quantity | 60led per meter |
| IC Quantity | 60PCS/M |
| Voltage | DC5V |
| Power | 14.4w/m |
| Emitting Color | RGBW |
| PCB Width | 12MM |
| IP Rating | IP20/IP65/IP67/IP68 |
- 5V power supply, more secure.
- 60 LEDs per meter, the resolution is moderate
- SK6812 IC, with signal break-point continuous transmission function
- With the controller, any flash effect can be achieved.
- 12MM board width, good heat dissipation.
- 14.4w power per meter, Energy saving
- The use of soft PCB board can be folded into a variety of shapes
LED has the advantages of low voltage drive, environmental
protection and energy-saving, high brightness, large scattering
angle, good consistency, ultra-low power, long life, and so on. By
integrating the control circuit into the LED, the circuit becomes
simpler, smaller and easier to install.
Main application areas:
●LED full-color luminous string, LED full-color module, LED magic
soft and hard lamp bar, LED guardrail tube, LED appearance/scene
lighting
●LED point light source, LED pixel screen, LED special-shaped
screen, various electronic products, electrical equipment running
horse lamp.
Description of characteristics:
●Top SMD internal integration of high-quality external control
single-line cascade constant-current IC;
● control circuit and chip are integrated into SMD 5050 components
to form a complete external control pixel, and the color
temperature effect is uniform and consistent.
● the built-in data shaping circuit, any pixel receives the signal
and then outputs it through waveform shaping to ensure that the
line waveform distortion will not accumulate.
● built-in power-on reset and power-down reset circuit, power-on
lights;
● grayscale adjusting circuit (256 grayscales adjustable),
● single-line data transmission, can be cascaded infinitely.
The transmission distance between two points is more than 10 M.●
shaping and forwarding enhancement technology
● data transmission frequency can reach 800 Kbps, When the refresh
rate is 30 frames per second, the number of cascades is not less
than 1024 points.

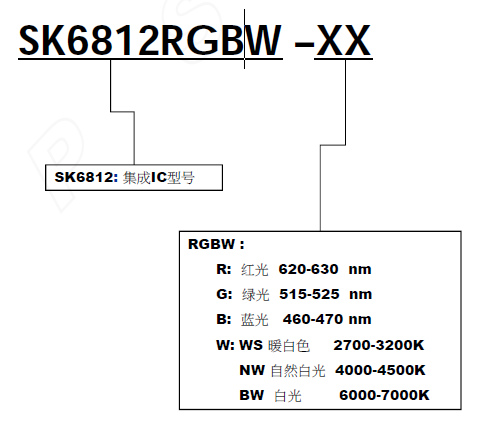

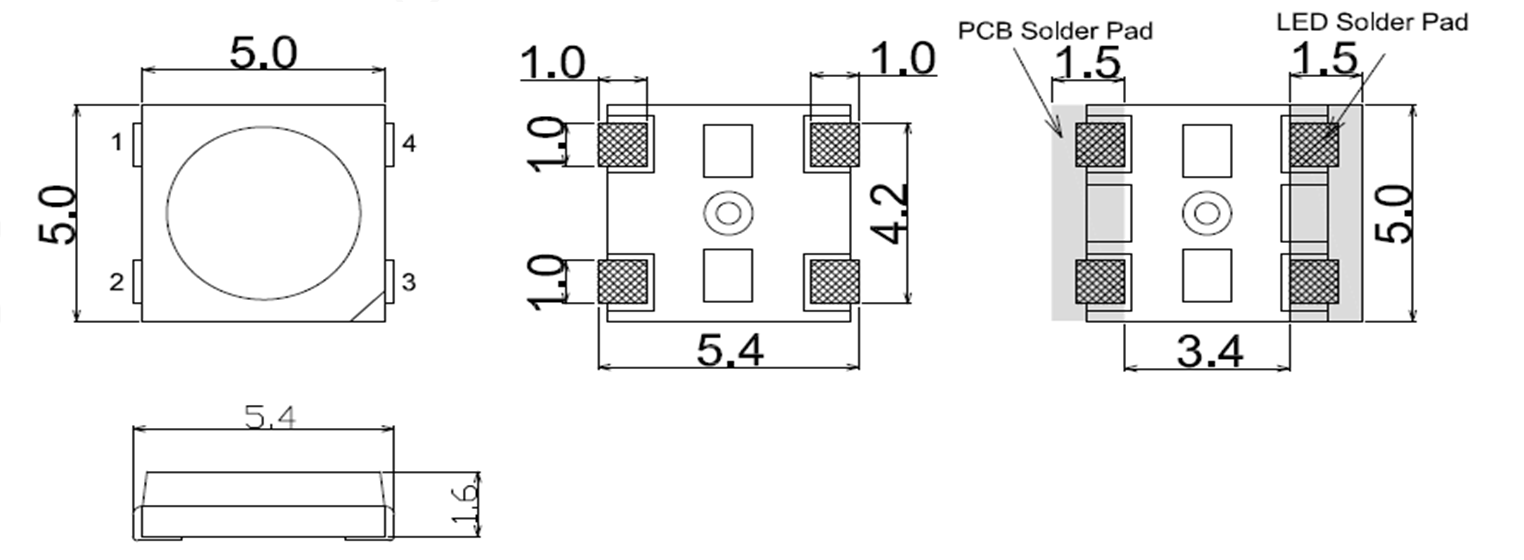

Mechanical dimensions:
