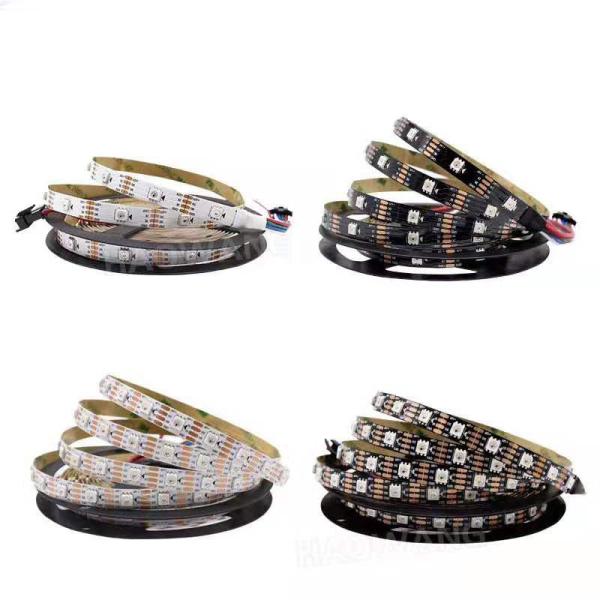

Energy Efficient SMD5050 GS8208 Addressable LED Strip
Each pixel can have its own color and brightness. You can control
them individually and set them to any color or animation you want.
256 brightness display and 24-bit color display.
It comes with self-adhesive 3M tape on its back, so you can fix it
on any dry and flat surface without any screws and clips.
It comes with 3pin JST-SM connectors on both ends. Each LED can be
cut off without damaging the rest strip. You can shorten, lengthen
or bend it freely if you want.
Applications:
The excellent light and user-friendly designs make LED strip
perfect for numerous applications, i.e cove lights, back lights,
cabinet lights, edge light, architectural lights for corridor,
canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night
clubs, coffee / wine bars, shopping malls, various shops, cinemas,
beauty centers, office fronts, even lights for household kitchens
or living rooms, etc.
Technical Parameters:
| Light source | SMD5050 RGB |
| Beam angle | 120 deg. |
| Operating voltage | DC12V |
| Consumption watts per 144 LEDs/M | 46(max)W |
| Pixel pitch(mm) | P6.9mm |
| Pixel resolution(Dot/㎡) | 20736 |
| Entire piece LED quantity | 144 pcs |
| Printed circuit board thickness | 0.25mm |
| Operation Temperature | -40℃-40℃ |
| Storage Temperature | -10℃-50℃ |
Features and Benefits :
- Control IC included, supporting numerous Color-change effects;
- control by SD controller,DMX512,Artnet
- Flexible PCB 5V low voltage input;
- PCB Color: White & Black available for choose
- Absolutely addressable ,each IC built inside RGB LED
- 5 Meter per PCS,Customer’s size available also
| Part Number | Emitting color | LED Quantity | Voltage (V) | IC | Current (A/1m) | Lumen per 1m/60LED |
|
|
| TS-10060-GS8208RGB | RGB | 60/M | 12 | Ws2815 | 1.5A | R288/G720/B216 lm Non-waterproof |
| TS-100144-GS8208RGB | RGB | 144/M | 12 | Ws2815 | 3.6A | R288/G720/B216 lm Silicon Tube |
