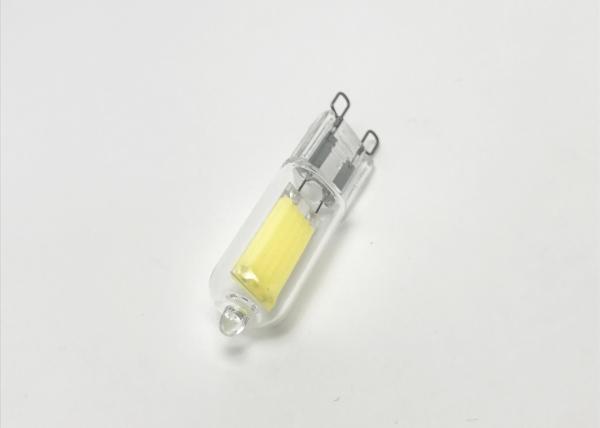

Ceramic Glass 3.2W 90CRI 320 Lumens 120v LED G9 BULB
【HIGH BRIGHTNESS】G9 capsule led bulb 360 degrees with 9pcs super
bright 2835 SMD LEDs, 200 lumens Cool White 6000K / Warm White
3000K light output. No strobe, no flicker, protect your eyes.
【ENERGY SAVING】Low power consumption, 2W LED can replace 15 Watt 18
Watt 20 Watt G9 halogen bulbs, save over 90% electricity bill.
【EASY TO INSTALL】Standard G9 bi-pin base can be easily fitted to
replace ordinary G9 halogen bulbs. Instant on without any delay.
【WIDELY APPLICATIONS】Perfect for use in kitchens, living rooms,
bedrooms, and hallway. Perfect lighting source for a crystal
chandelier, table, and floor lamps, pendant fixtures, ceiling
fixtures wall lamp, bedside light, atmosphere lighting, etc.
【ATTENTION】This G9 LED lamp is NOT DIMMABLE. DON'T use it with any
dimmable switches or fixtures. Or there might cause a flickering
problem and have noise.
G9 LED BULB Quick Detail:
- FULL GLASS
- AC220-240V input options
- Transparent
- Sapphire Substrate
- Sanan chip
- Mix gas coolingt
- 320º beam
- Up to 70% energy savings
- 20w power consumption
- IP44 Ingress protection
- CE, RoHS, TUV, UL compliant
- 2 Year Warranty
G9 LED BULB Features:
- Full glass appearance which is same as a halogen bulb
- COB technology and get luminous flux up to 130lm/w+
- Mix with Semiconductor technology and LED technology and improve
production efficiency.
- By using halogen sealing technology can be achieve huge capability
easily
- Best retrofit choice for hologen bulb G9
G9 2W LED BULB Technical parameter:
Basic information
P/N | Length | Material | Glass Type | Socket Type |
| FML-001-2700K | 50*φ13.3 | Glass | transparent | G9 |
Electrical parameter (Temperature=25℃)
| Voltage(VAC) | Input current(A) | Rated Power(W) |
| AC230V | Typ:0.01 | 2W±10% |
Optical parameter (Temperature=25℃)
| Item | parameter | Unit |
| Input Voltage | AC230V | V |
| power factor | PF≥0.75 | - |
| LED Type | Molding filament | - |
| Luminous Flux | CCT | Min: | Typ: | Max: | lm |
| 2700 | 189 | 210 | 231 | |
| 3000 | 189 | 210 | 231 | |
| 4000 | 198 | 220 | 242 | |
| 6300 | 198 | 220 | 242 | |
| Efficiency | Typ: | 115 | Lm/w |
| Color Temperature | 2700 | 3000 | 4000 | 6300 | K |
| 2650-2850 | 2850-3250 | 3850-4250 | 6000-6600 | |
| RA | RA≥80 | - |
| Light Angle | 360 | - |
| IPX | IP44 | - |
Competitive Advantage:
- Outstanding appearance compare with other type of G9, such as
silicon,plastic, ceramic and so on
- Less labor cost than conventional G9
- Higher lumen output and most reasonable retrofit for halogen bulb
Cautions
- In order to ensure the product work properly, please use the power
supply within indicating voltage range.
- This product does not support dimming
- Please follow the correct installation steps to install the
product.
- In order to ensure the effectiveness and safety, please do not in
the high humidity or dustenvironment and bathroom, sauna room, this
product use outdoor rain place
